CONNECTING ROD POLARIS, HOT RODS 8145
Hot Rods Connecting Rod Kit 8145. Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc. Advanced design minimizes high-RPM bearing race distortion with side scalloping and vent slots. Double-forged for improved grain flow and dimensional consistency. Shot-peened and double-honed for exceptional strength under heavy loads. Double-drilled small ends supply extra lubrication and cooling to the wrist pin bearing. Silver-coated thrust washers and crank pin bearings for enhanced lubricity. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Big End Bore: 34.00 mm. Center to Center: 120.00 mm. Pin Diameter: 25.00 mm. Pin Length: 55.90 mm. Small End Bore: 23.00 mm. Washer Thickness: 1.00 mm. Part Number: 56-203.HR.
- SKU
- 56-203.HR
- Brand
- Hot Rods
- Availability
- In Stock (2)
FULL DESCRIPTION

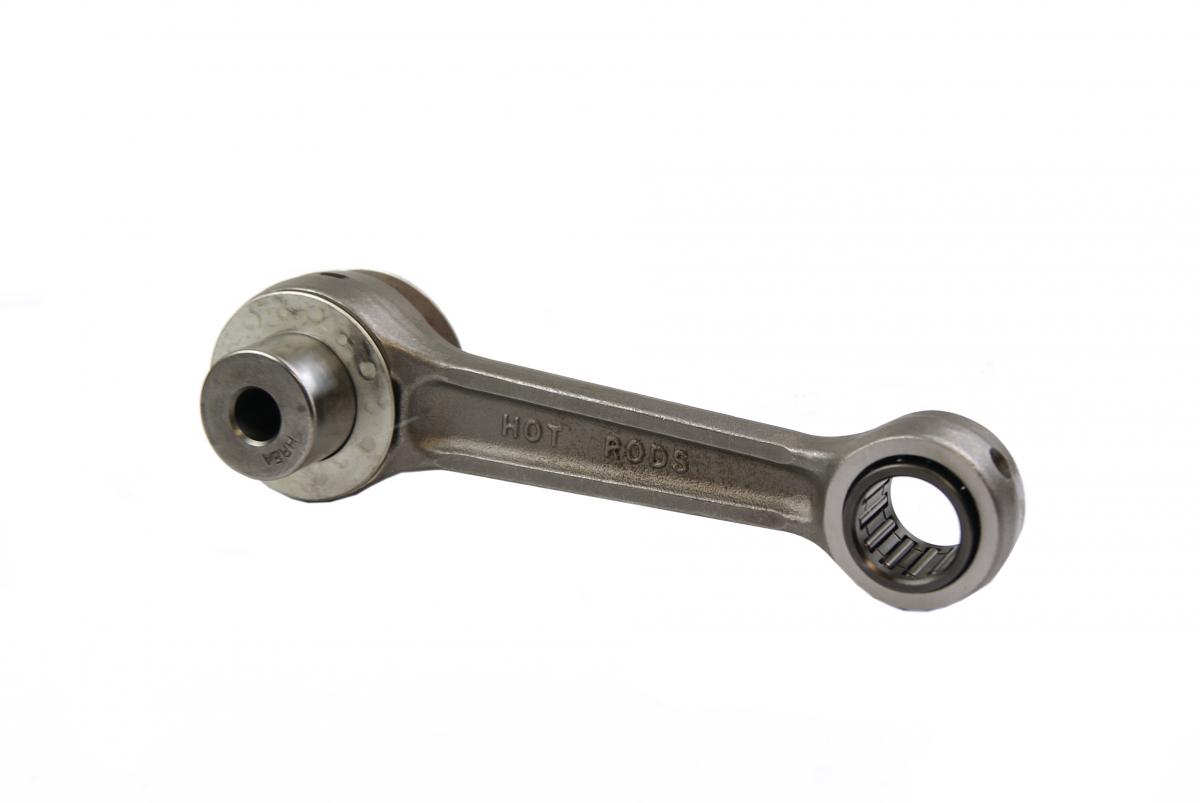

Hot Rods Connecting Rod Kit for Polaris
The Hot Rods Connecting Rod Kit 8145 is a premium aftermarket replacement component designed to deliver superior strength, durability, and reliability for demanding applications. Manufactured from high-quality hot-rolled ASTM 4115 steel, these connecting rods are precision-engineered and case-hardened to ensure optimal engine performance and longevity.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional hardness and wear resistance.
- Advanced design features side scalloping and vent slots to minimize high-RPM bearing race distortion.
- Double-forged construction enhances grain flow and provides consistent dimensions.
- Shot-peened and double-honed processes contribute to exceptional strength under heavy load conditions.
- Double-drilled small ends promote increased lubrication and cooling for the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings for improved lubricity and reduced friction.

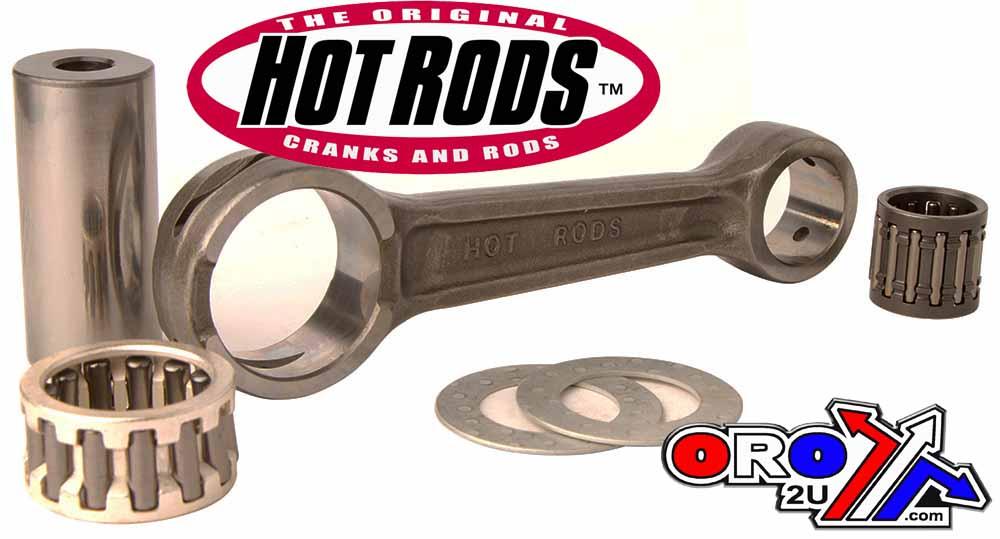

- This complete kit contains all necessary components for a full connecting rod replacement: rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Big End Bore: 34.00 mm
- Center to Center Length: 120.00 mm
- Pin Diameter: 25.00 mm
- Pin Length: 55.90 mm
- Small End Bore: 23.00 mm
- Washer Thickness: 1.00 mm
Replaces OEM Part Numbers:
- Polaris: 3082790
- Polaris: 3083625
- Polaris: 3083799
- Polaris: 3083922
- Polaris: CR168
- HOTRODS: 8145
- Wiseco: CR168
