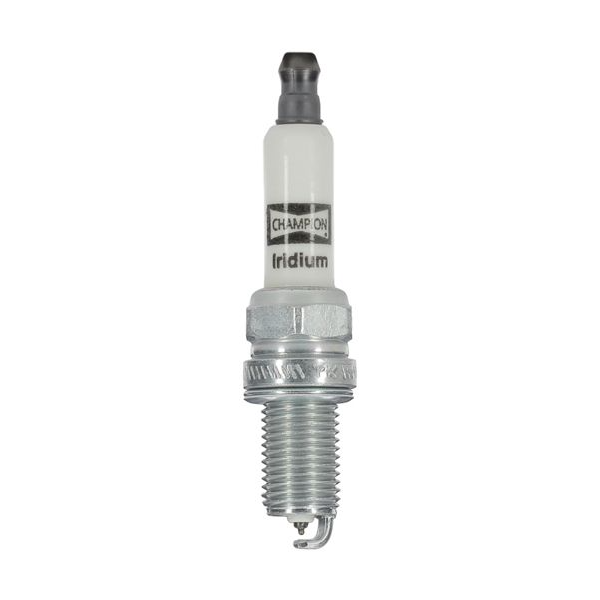

Champion Spark Plug RA7WHPB3 (CCH9701)
Champion Iridium Spark Plug RA7WHPB3 (CCH9701) delivers maximum performance and efficiency with an iridium centre electrode for extended service life and reliable performance. Features a fine-wire centre electrode with a V-trimmed design for smoother combustion and improved engine response, and a V-trimmed ground electrode for optimal ignition performance and maximum power output. Maintains stable operating temperature under all engine loads with Heat-Active alloy for rapid ignition. Plug Type: RA7WHPB3, Centre Electrode Tip Material: Iridium, Pre-Gap Size: 0.85mm (0.033in), Ground Electrode Quantity: 1, Hex Size: 15.880mm (0.625in), Insulator Height: 0.03in, Manufacturer Heat Range: 8, Seat Type: Flat, Reach: 0.75in, Thread Diameter: 12.000mm (0.472in), Resistor Type: Yes, Ground Electrode Tip Design: J Gap, Ground Electrode Core Material: Platinum, Washer Included: Yes, Classification: Champion Iridium, Electrical Terminal Type: Non-Removable Nut, Hex Type: Hex, Washer Type: Crush, Indexed: No, Part Description: Spark Plug. Cross Reference: NGK - DR7EIX.
- SKU
- 37-CCH9701
- Brand
- Champion Spark Plugs
- Availability
- In Stock (4)
FULL DESCRIPTION
Champion Iridium Spark Plug RA7WHPB3
Enhance your engine's power and efficiency with the Champion Iridium Spark Plug RA7WHPB3. This premium spark plug is designed for superior ignition performance and extended service life, making it an essential component for automotive enthusiasts seeking optimal engine operation.
Key Features:
- Maximum Performance: Achieves unparalleled ignition efficiency and boosts engine power output.
- Maximum Life: Features an iridium centre electrode for extended durability and consistently reliable performance.
- Enhanced Ignitability: Equipped with a fine-wire centre electrode and a V-trimmed design to promote smoother combustion and improve engine response.
- Sharper Spark Focus: The V-trimmed ground electrode is engineered to optimize ignition performance for maximum power delivery.
- Stable Operating Temperature: Maintains consistent performance across all engine load conditions.
- Heat-Active Alloy: Utilizes a Heat-Active™ alloy to rapidly reach optimal operating temperature, facilitating quick and efficient ignition.
Specifications:
- Plug Type: RA7WHPB3
- Centre Electrode Material: Iridium
- Ground Electrode Material: Platinum
- Pre-Gap Size: 0.85mm (0.033 inches)
- Ground Electrode Quantity: 1
- Hex Size: 15.880mm (0.625 inches)
- Insulator Height: 0.03 inches
- Manufacturer Heat Range: 8
- Seat Type: Flat
- Reach: 0.75 inches
- Thread Diameter: 12.000mm (0.472 inches)
- Resistor Type: Yes
- Ground Electrode Tip Design: J Gap
- Washer Included: Yes
- Washer Type: Crush
- Electrical Terminal Type: Non-Removable Nut
- Classification: Champion Iridium
Cross Reference:
- NGK - DR7EIX
